100 Ports Epoxy Fiber Optic Curing Oven For ST FC SC LC SMA Connectors

  • 1
  • 2
  • 3

Brand Name : CLX

Model Number : CLX-D01

Place of Origin : Guangdong,China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T

Supply Ability : 50 set/week

Delivery Time : 5-8 work days

Packaging Details : Carton Packaging

Product Name : Fiber Optic Connector Curing Oven

Application : Optical fiber patchcord Making

Machine Size : 420*320*140(mm)

Net Weight : 9kg

Heating temperature : 40 ~ 300 ℃

Power supply : 220VAC

Warranty Time : 1 Year

Contact Now

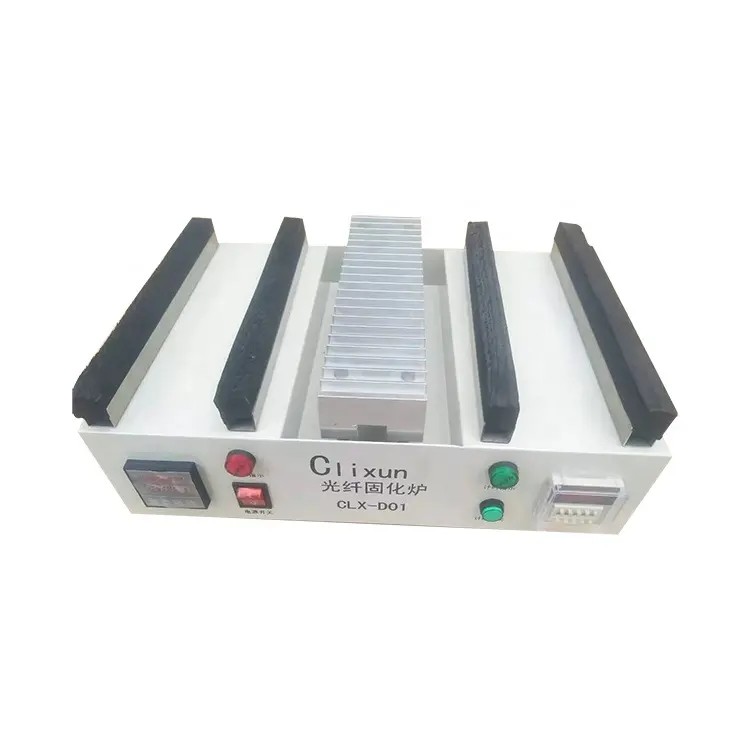

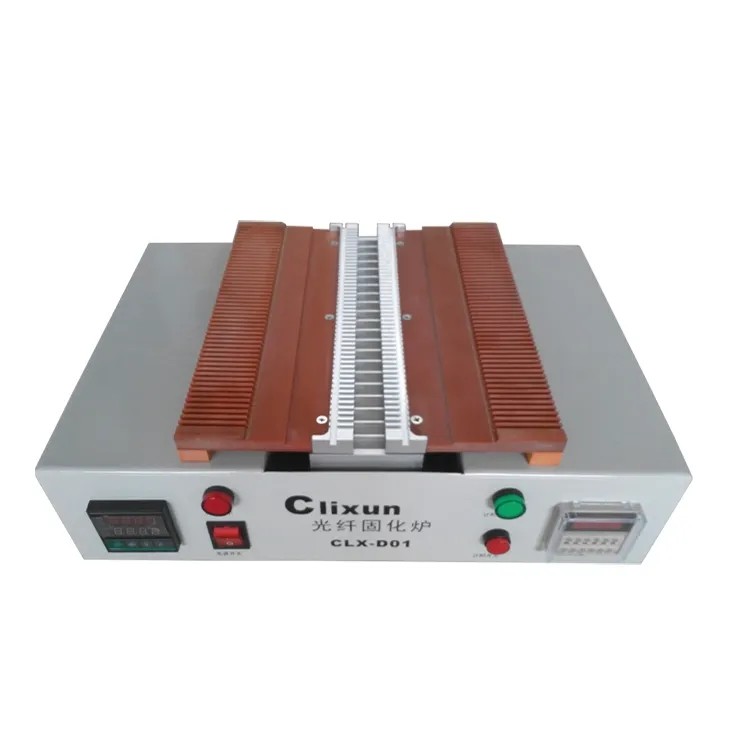

100 Ports Epoxy Curing Heat Oven Fiber Optic Curing Oven For ST FC SC LC SMA Connectors

Model:CLX-D01

Place of Origin:ShenZhen,China

Description

Fiber optic connector heating curing furnace is suitable for fiber optic connector manufacturers, used for heating and curing all kinds of fiber optic connectors.It can simultaneously cure 100 core joints and 42 integrated joints at one time respectively.Adopt Japanese electronic component control, temperature control is stable.Temperature controller with PID function, free setting of the benchmark temperature, temperature control accuracy up to 1℃;The heating time is adjustable.

The fiber optical curing oven suits in the fiber optic connector Manufacturer, uses in heating up each kind of optical fiber connector.

1.Used to heat cure optical fiber epoxy resin, and simultaneously cure 100 ceramic ferrules
2.The temperature controller has a self-tuning (PID) function, which can set the reference degree freely, the temperature control accuracy can reach 1 ℃, and the heating time can be adjusted.
3.Controllable temperature20 ℃ ~ 300 ℃, temperature control precision can reach 1 ℃ plus adjustable time
4.Buzzer sounds regularly to keep heating. Controlled by the time switch, press the summer key again to count time.

Quick Detail

● According to the specific needs of the production of optical fiber connectors and specially elaborate design, to avoid fiber breaking, fiber drawing and inconvenient inspection and other problems.

● Free setting of reference temperature, humidity automatic adjustment, controllable temperature 0℃ ~ 300℃, temperature control accuracy up to 1℃ heating time adjustable.

● Two control modes are available

A, continuous heating mode for a long time continuous heating, constant temperature, controlled by the main switch of the power supply.

B. Timing alarm mode Timing buzzing alarm, keep heating.Controlled by the time switch, press the reset button and reschedule.

Specifications

net weight
8KG
Dimensions
400mmx280mmx120mm
Heating temperature (Celsius)
20℃ 〜 300℃
control precision (Celsius)
1℃
One-time processing capacity
100 ceramic ferrules or 50 fiber optic connectors
Suitable for fiber optic connector models
SC/FC/ST/LC/E2000/MU The optical fiber connector(1.25MM/2.5MM Ceramic ferrule)
Operating Voltage
AC220V
working frequency
50-60Hz
heating time
1 minute-99.99 hours
application
800w

100 Ports Epoxy Fiber Optic Curing Oven For ST FC SC LC SMA Connectors100 Ports Epoxy Fiber Optic Curing Oven For ST FC SC LC SMA Connectors

FAQ

1. Are you a factory or a trader?

......we are factory.

2. What is your MOQ?

......MOQ 1 piece.

3. Do you provide sample services?

......Yes, we will provide samples(Samples at prices announced by chuanglixun).

4. How will you ship to me?

....... We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity

5. How do we pay

......Book in advance or multiple payment methods such as T / T and T / L.

6. How long is your product warranty?

......The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.

7. Do you provide customized services?

......Yes, we provide customized services, According to customer requirements and description.

100 Ports Epoxy Fiber Optic Curing Oven For ST FC SC LC SMA Connectors
