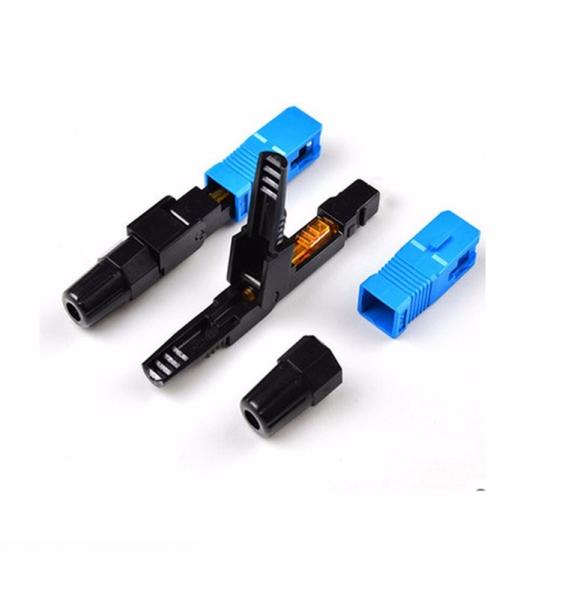

FTTH SM MM Fiber Optic Fast Connectors

Brand Name : CLX

Model Number : SC/UPC

Certification : ROHS

Place of Origin : Guangdong,China

MOQ : 100 Pcs

Price : Negotiable

Payment Terms : T/T

Supply Ability : 10000 pcs/day

Delivery Time : 5-8 work days

Packaging Details : 10pcs in blister card, 100pcs in white box;1000 or 2000 in one carton

Product name : Fiber Optic SC UPC Fast Connector

Color : Blue

Application : FTTH FTTB FTTX Network

Return loss : ≥50dB

Insertion loss : ≤ 0.3dB

Durability : ≤ 0.2db typical change, 1000 times

Contact Now

SC UPC FTTH SM MM Fiber Optic Quick Fast Connector

Model:SC/UPC

Place of Origin:Guangdong,China

Description

Fast connectors make fiber terminations quick, easy and reliable. These fiber optic connectors offer terminations without any hassles and require no epoxy, no polishing, no splicing, no heating and can achieve similar excellent transmission parameters as standard polishing and splicing technology. Our fast connector can greatly reduce the assembly and set up time. The pre-polished connectors are mainly applied to FTTH cable in FTTH projects, directly in the end user site.

Key Features

1) Low insertion loss

2) Ease of installation

3) Low cost & Reliability

4) Ease of use

5) Low environmental sensitivity

6) High return loss (low amounts of reflection at the interface)

Application

1) CATV & FTTH

2) Telecommunication networks

3) Local area networks (LAN)

4) Wide area networks (WAN)

5) Premise installations

6) Data processing networks

7) Video and military active device termination

8) Optical Distribution Frame

9) Optical Network Equipments

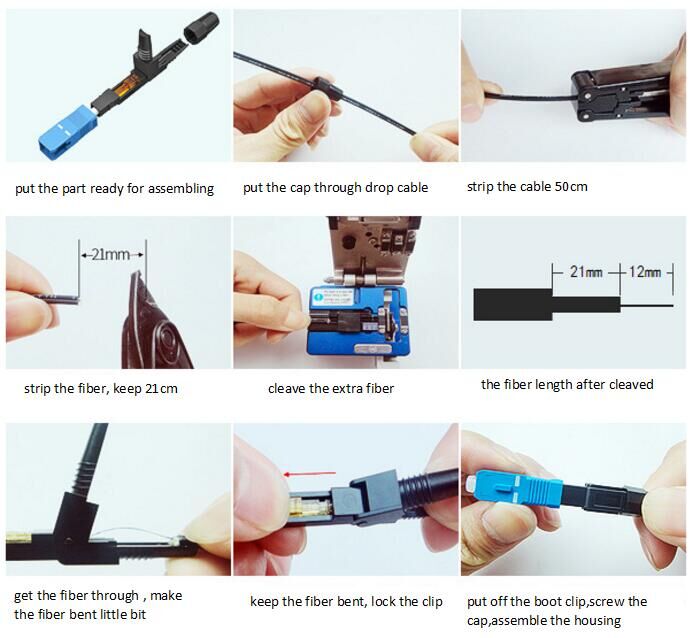

Use Description

Specification

Mode	SM		MM
Polish	UPC	APC	PC
Insertion Loss	Typical ≤0.2dB Maximum ≤0.3dB		≤0.25dB
Return Loss	≥50dB	≥65dB	≥35dB
Interchangeability	≤0.2dB
Repeatability	≤0.1dB
Durability	≤0.2dB (1000 times mating)
Tensile Strengh	> 10kg
Temperature	≤0.2dB (-40+85 sustain 100 hours)
Humidity	≤0.2dB (+25+65 93 R.H.100 hours)

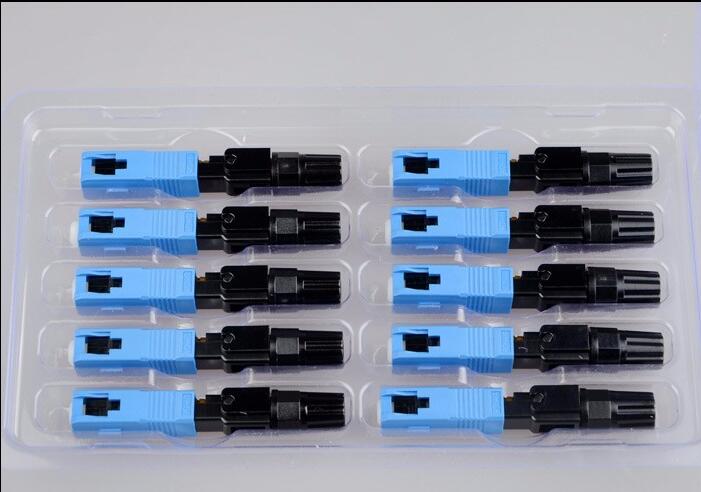

Packaging

FTTH SM MM Fiber Optic Fast Connectors
